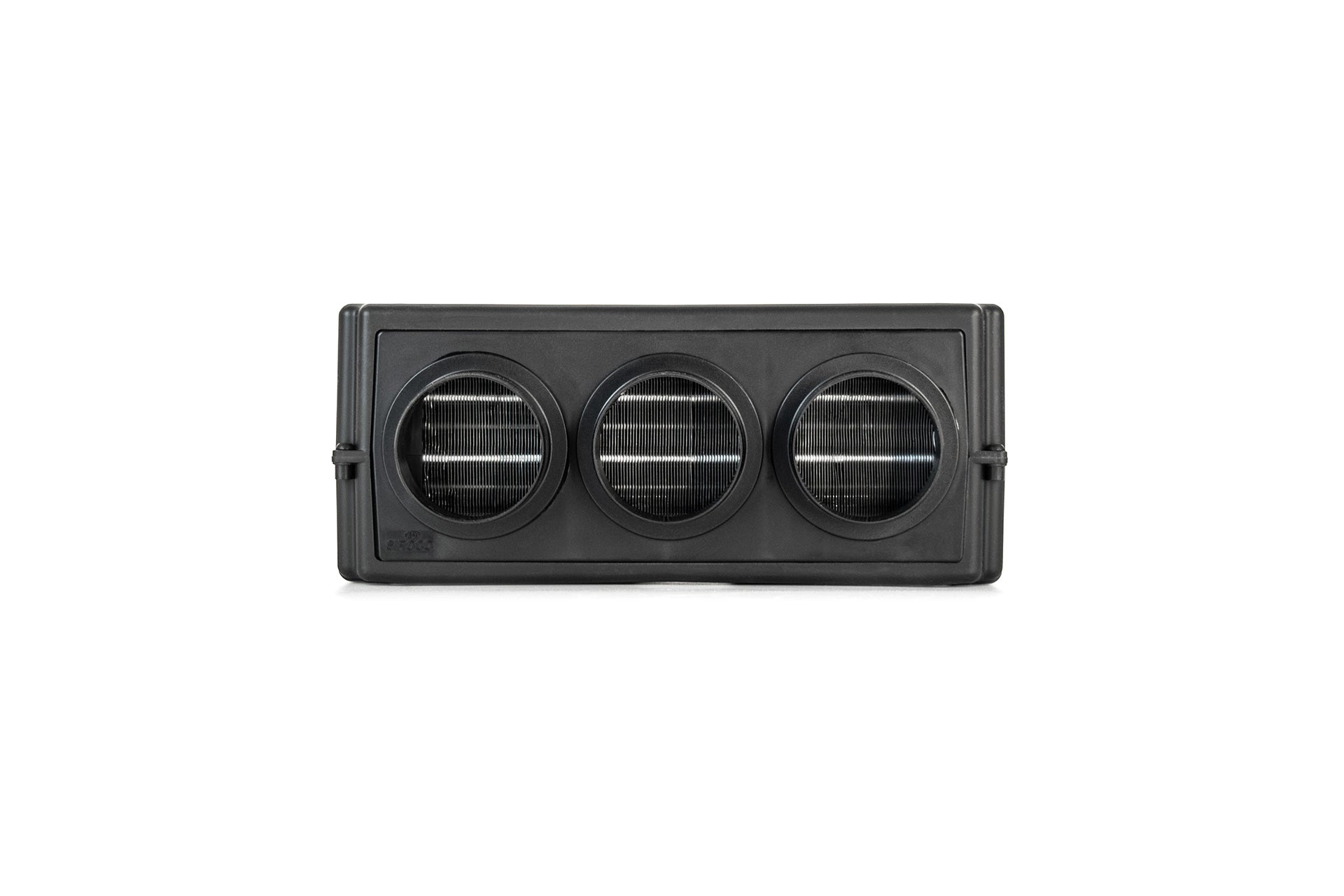

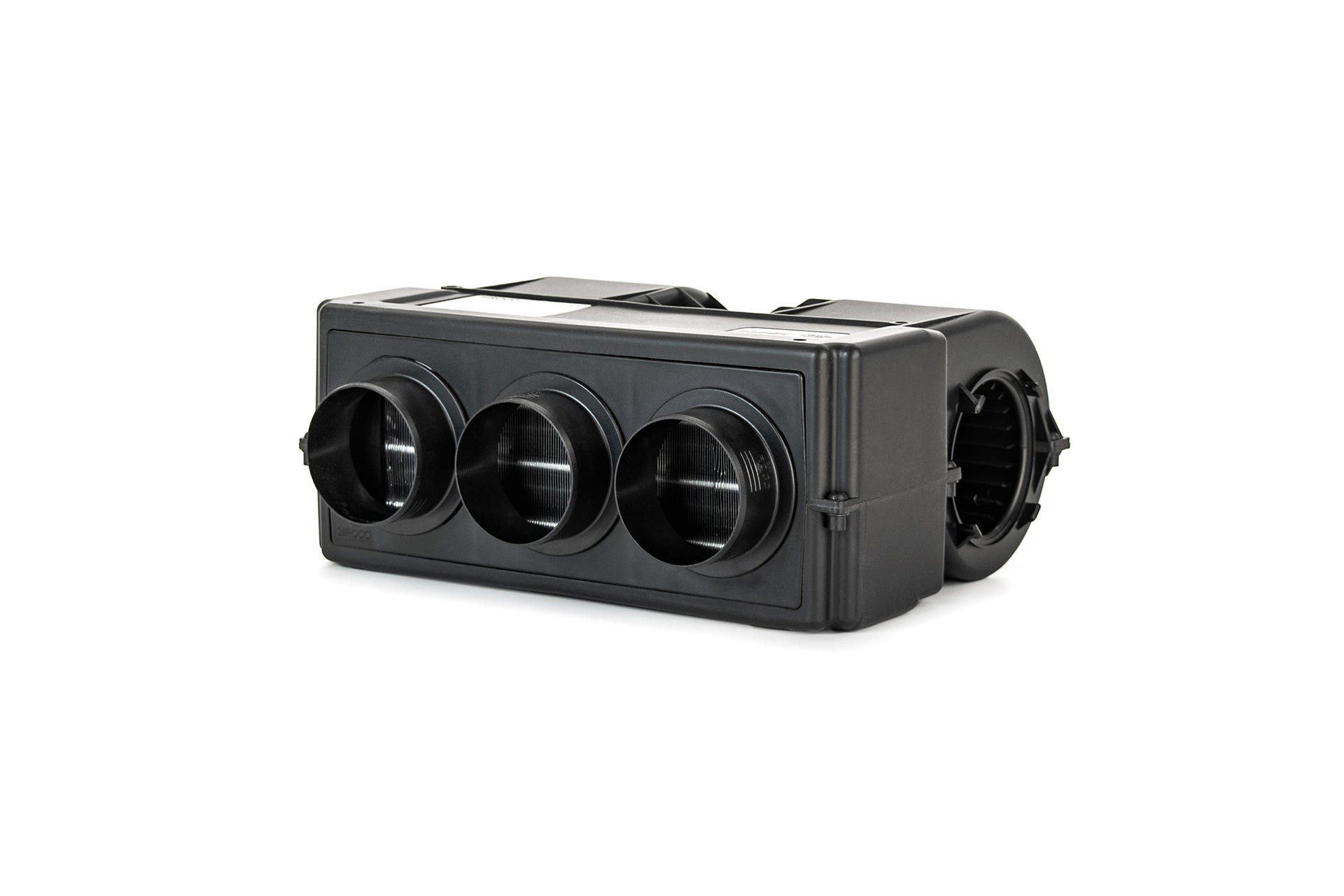

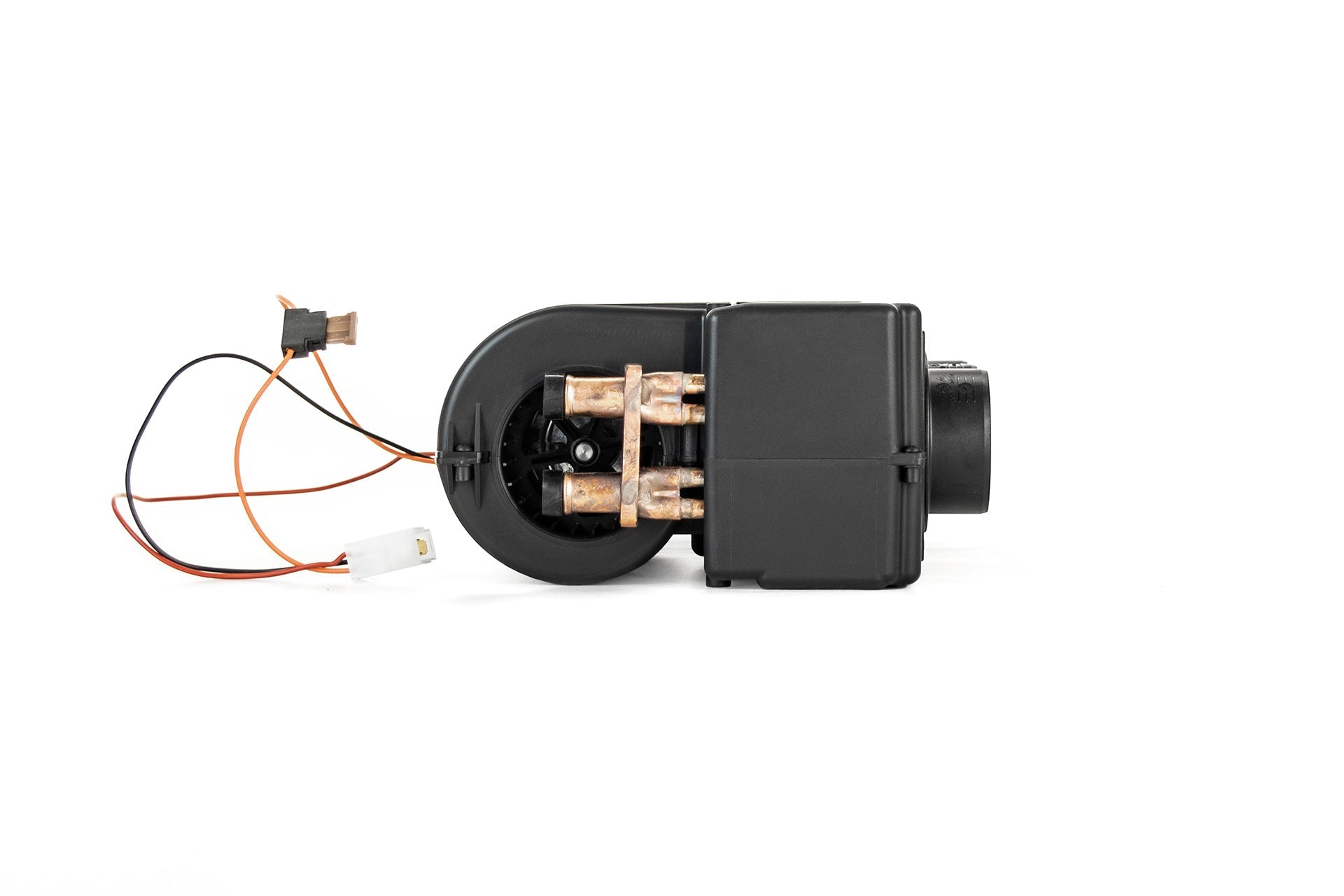

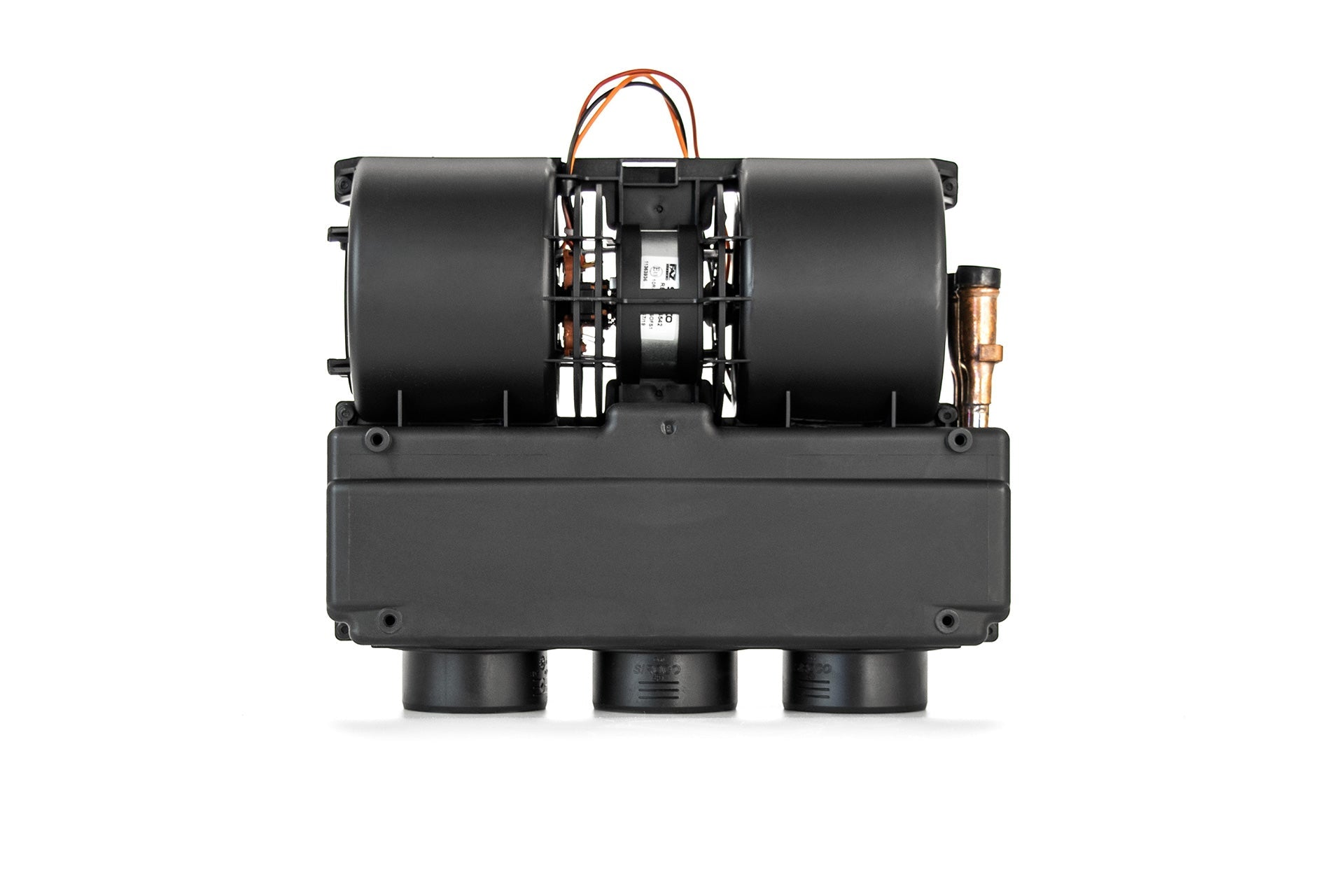

Blower Box| 2 Speed | TENERE PERFORMA 3D60 Liquid heat exchanger

Voltage: 12/24V

Nominal air flow: 314 m3/h

This heat exchanger has a 2-speed fan

Heating capacity, Ethylene glycol: 6.05 kW

3 x ø60 mm air sleeves for even hot air distribution

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88

Liquid heat exchanger with the fan is suitable for all the following liquid heaters:

AUTOTERM Flow 5 D / B
AUTOTERM Flow 14D

Manufacturer: SIROCO

Technical specifications

Voltage    24 V
Electrical power    85 W
Weight    1.9 kg
Nominal air flow    314 m3/h
Heating capacity, Ethylene glycol    6.05 kW

PLEASE SEE OPERATION MANUAL HERE
